ProductOverview

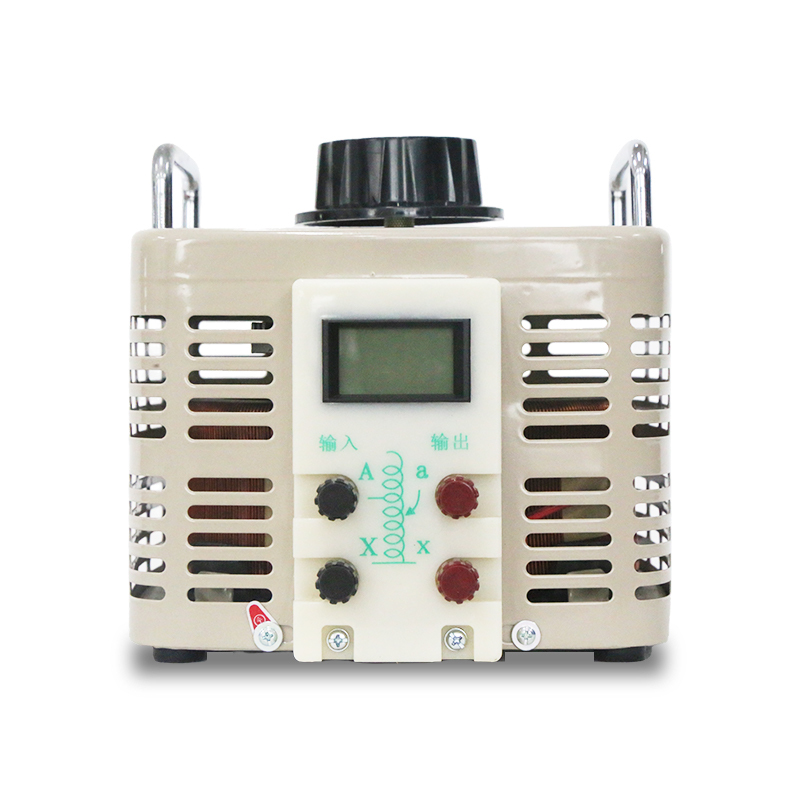

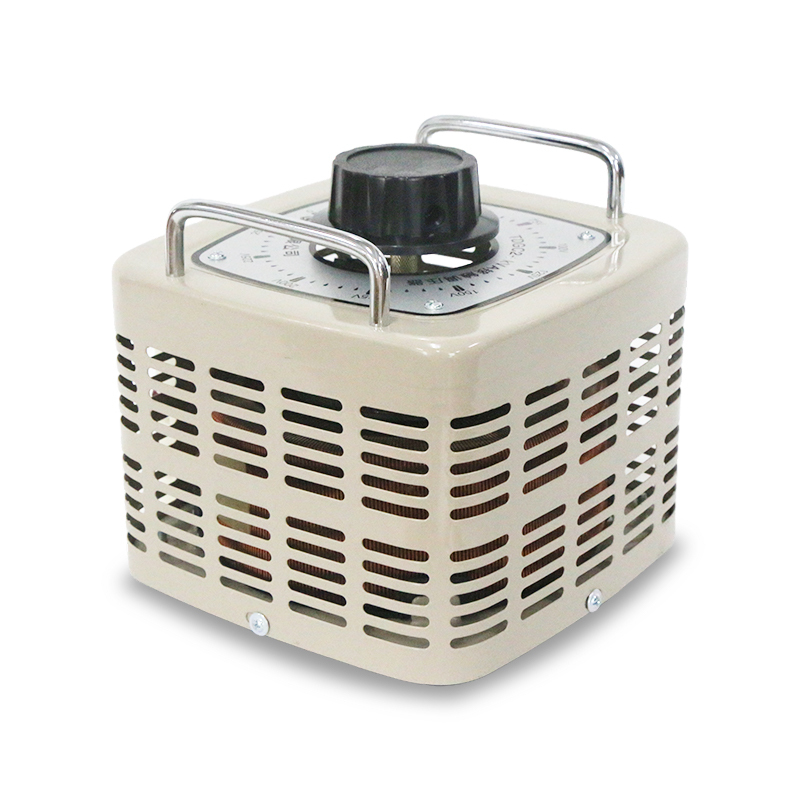

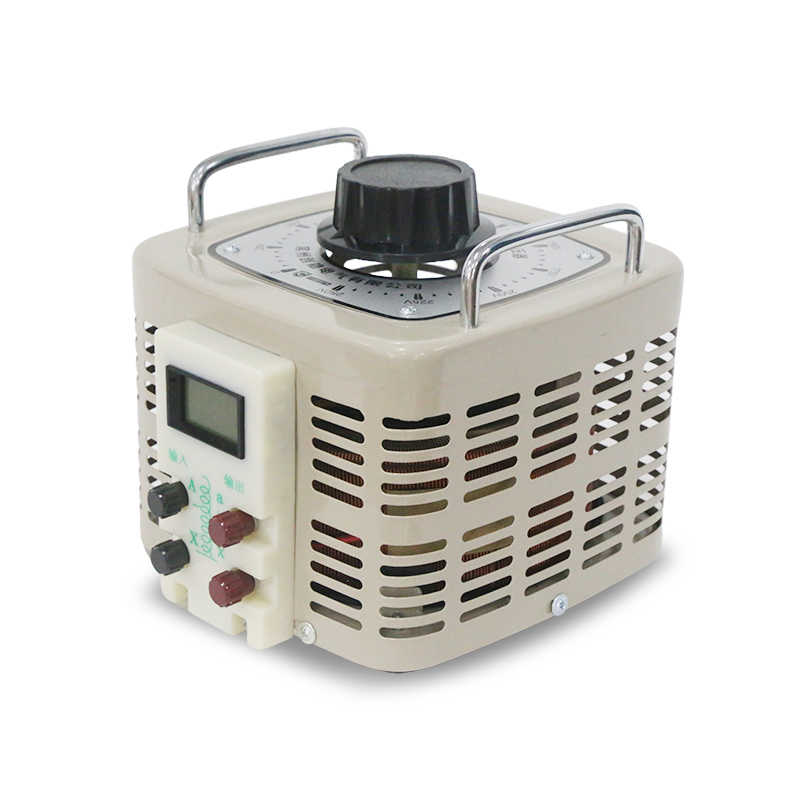

TDGC2J/TSGC2J series voltage regulator is a new energy saving product made by imported silicon steelsheet. The voltage regulator is designed, manufactured and inspected according to JB/T10091 and related
standards.
Productfeatures
The TDGC2J series voltage requlator can continuously adjust the output voltage 0-250VThe TSGC2J series voltage regulator can continuously adjust the output voltage 0-430Vm It has the characteristics of undistorted waveform, small volume, light weight, high efficiency, convenientuse,reliable performance and long run.
Technical parameter
| Phase number | Single phase | Three-phase |
| Rated frequency | 50HZ | 50HZ |
| Raledimnput wolage range | 220V | 380V |
| Input voltage range | 0~250V | 0-430V |
| Insulation grade | A | A |
| Aerage temperature of coll | 60℃ | 60℃ |
| Slandard of execution | JB/T10091 | |
| Operation mode | Manual | Manual (please specify if electric) |
