How to properly connect a voltage stabilizer? A comprehensive guide from basic to hands-on

By Alice May 10th, 2025 639 views

In today's world, the quality of electricity is of paramount importance. Voltage stabilizer as a key device to ensure the stable operation of power equipment, its correct wiring is not only a technical requirement, but also an important guarantee of power safety. In this paper, we will start from the working principle of the voltage stabilizer, a detailed explanation of single-phase and three-phase voltage stabilizer wiring specifications, and combined with practical application scenarios, to build a complete set of safety wiring knowledge system for you.

I. The technical basis of the voltage stabilizer: understand the principle of voltage stabilization

1.1 principle of operation explained

Voltage stabilizer can stabilize the output voltage by automatically adjusting the coil turns ratio or changing the switching state of the power electronics. Take the common servo type voltage stabilizer as an example, its carbon brushes can move on the autotransformer windings by up to ±20V. Coupled with the role of the error amplifier circuit, the output voltage fluctuations can be controlled within ±3%. With this kind of dynamic regulation ability, such as precision instruments, medical equipment and other voltage-sensitive equipment, can operate stably.

Voltage stabilizer

1.2 Interpretation of core parameters

Rated capacity (kVA): This determines the maximum apparent power that the voltage stabilizer can carry. When choosing a voltage stabilizer, it should be chosen according to 1.5 times of the total power of the load. For example, if the load power is 10kW, then we need to choose 15kVA voltage stabilizers

Response time: a good voltage stabilizer should be able to adjust the voltage within 20ms, which is much faster than the interruption time of the power supply that the general equipment can withstand (usually 50ms).

Efficiency curve: full load, the efficiency of the voltage stabilizer has to be 95% and above; light load, the efficiency can not drop more than 5 percentage points, so as to both energy saving and economic.

II. Single-phase voltage stabilizer wiring detailed guide

2.1 Port identification and wire diameter matching

The input/output terminals of the single-phase voltage stabilizer are identified by yellow and green, brown and blue. If the rated current of the fire wire (L/L') terminal reaches 63A, you have to use the copper core wire with 6mm² cross section area; the zero wire (N/N') just use 4mm² wire. The grounding terminal (PE) must be made of yellow and green wires with a cross-sectional area of not less than 2.5mm², and the grounding resistance should be less than or equal to 4Ω.

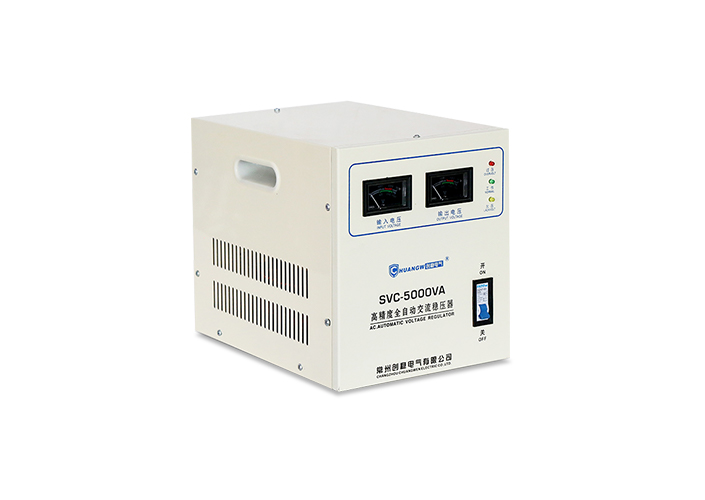

single-phase voltage stabilizer

2.2 Wiring process specifications

Stripping length: It is recommended to expose the conductor 8 - 10mm. Too long a short circuit is easy, too short will affect the reliability of the connection.

Torque control: Use a special torque wrench to tighten the terminals. The recommended torque for copper terminals is 0.6N・m, and the torque for aluminum terminals should be reduced to 0.4N・m to prevent screwing the threads.

Insulation: After connecting the wires, all exposed conductors should be wrapped with insulating tubes, and the voltage resistance level of the insulating tubes should be 600V and above.

2.3 Special Scenario Adaptation

Power supply for mobile equipment: If it is used to supply power to temporary equipment in exhibition or construction site, it is better to install a leakage protection module (RCD) and set the action current at 30mA.

Harmonics management: If the voltage stabilizer is connected to the front of the inverter, UPS and these non-linear loads, you have to add a reactor to suppress harmonics, otherwise the regulator may be wrong.

III. Three-phase voltage stabilizer wiring technology points

3.1 Phase sequence management specification

Three-phase voltage stabilizer must be strictly in accordance with the A (yellow), B (green), C (red) phase sequence to connect. Phase sequence is wrong, such as motor loads will be reversed. Before connecting the line must use the phase sequence meter to check the utility phase sequence, after connecting the line must also use the rotating magnetic field detector to confirm the output phase sequence is not correct.

3.2 Balanced load configuration

The unbalance of three-phase load should be controlled within 15%. If it exceeds 30%, a static transfer switch (STS) must be installed to balance the load. A data center test found that after reducing the three-phase imbalance from 25% to 10%, the voltage stabilizer temperature rose 12℃ less, and the service life was extended by 40%.

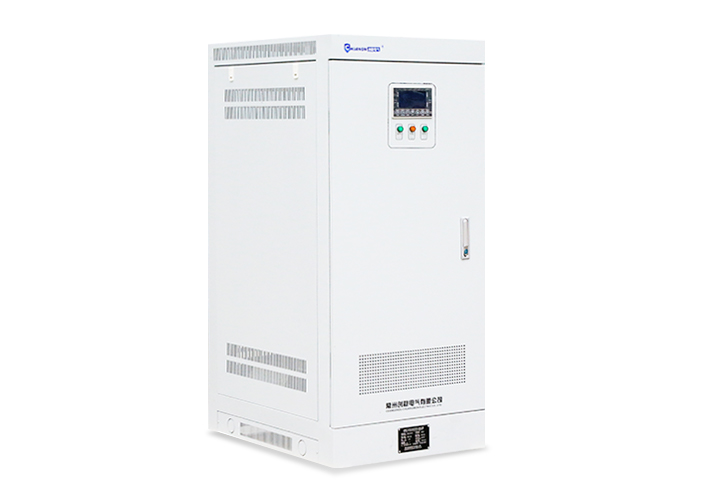

Three-phase voltage stabilizer

3.3 Zero Ground Separation

When supplying power to precision electronic equipment, it is recommended to use the zero-ground separation wiring method. That is, the voltage stabilizer output zero line (N') and grounding system is separated, only in the load side of the ground. This prevents the zero line current from interfering with the ground potential and reduces the common mode noise to less than 50mV.

IV. The construction of safety protection system

4.1 Grounding system design

Grounding pole selection: the best use of copper-clad steel grounding rod, the length of 2.5m and above, buried in the ground 0.8m, and then filled around the lowering agent.

Equipotential connection: Use 4mm² copper wire to connect the metal case of voltage stabilizer, input/output terminals and grounding busbar, which can play a similar role as Faraday cage protection.

4.2 Protection device cooperation strategy

Cascade protection: install plastic case circuit breaker (MCCB) in the upper level distribution box, and install small circuit breaker (MCB) in the lower level load terminal to form three-level protection.

Intelligent monitoring: Use intelligent voltage stabilizer with RS485 interface to monitor voltage, current and temperature in real time. If there is any abnormality, the information will be transmitted to the building management system (BMS) through Modbus protocol.

4.3 Emergency Response Plan

Over-voltage protection: If the output voltage exceeds 115% of the rated value, the output must be cut off within 0.1 second.
Short-circuit protection: Use the electromagnetic release mechanism to ensure that the circuit is disconnected within 20ms under the condition of 5 times of rated current.

V. Acceptance and operation and maintenance standards

5.1 Wiring acceptance checklist

checklist	Qualifying standards	Detection Tools
Wire Gauge	Conforms to Current Carrying Capacity	Vernier Caliper
Torque Values	Meets manufacturer's recommendations ±10%	Torque Wrenches
Insulation Resistance	≥100MΩ(500V Megohmmeter)	Insulation Resistance Tester
Ground Resistance	≤4Ω	Ground Resistance Tester
Phase sequence	Consistent with mains input	Phase sequence table

5.2 Preventive maintenance program

Daily inspection: Check the status of the operation indicator and memorize the output voltage value.

Monthly inspection: Use infrared camera to measure the terminal temperature, focusing on the place where high current passes through.

Annual inspection: Do full load aging test to see if the voltage stabilization accuracy and response time are qualified.

5.3 Troubleshooting Guide

Output voltage fluctuation: check whether the carbon brushes are worn out or not, and measure the resistance value of the autotransformer winding.

Frequent tripping: test the power factor of the load, if necessary, install a power factor correction device (PFC).

Abnormal noise: check the cooling fan bearing, measure the servo motor operating current.

VI. The industry application case study

6.1 Medical Imaging Center

A three-phase servo voltage stabilizer is used in the CT room of a three-pronged hospital. Through zero-ground separation technology and harmonic suppression module, the failure rate of the equipment has been reduced from 12 times a year to 2 times a year, and the image is also 30% clearer.

6.2 Semiconductor Manufacturing

A factory producing 12-inch wafers uses an isolation transformer and voltage stabilizer in the power supply system of its photolithography machines, reducing the response time to voltage dips (10% below rated voltage) to 5ms and increasing the product yield by 0.8 percentage points.

6.3 Intelligent Agriculture

Modern greenhouses use a modular voltage regulator system, and the parameters can be adjusted remotely through the IoT platform. It can guarantee 99.98% availability of power supply in such a large temperature change from -20℃ to 50℃.

View more cases

VII. Future Technology Outlook

With the combination of silicon carbide (SiC) devices and digital signal processing (DSP) technology, the new generation of voltage stabilizers have three development trends:

High-frequency: switching frequency can exceed 100kHz, volume and weight can be reduced by 60%.

Intelligent: Built-in AI algorithms can predict load conditions and reduce efficiency optimization time to 10ms.

Networking: supports 5G communication and blockchain technology, and can become part of the distributed energy internet.

Nowadays, power electronics technology is developing rapidly, and voltage stabilizer wiring is no longer simply connecting wires, but a set of systematic electrical engineering. Strictly according to the wiring specification to do, not only for the equipment is good, but also to protect the safety of life and property. Whether it is a professional electrician, or an ordinary user, you have to be careful and get every wiring place to ensure the safety of electricity.
